HR 8299

49.5 kV maximum anode voltage · 110° deflection · 3 windings · 403 g

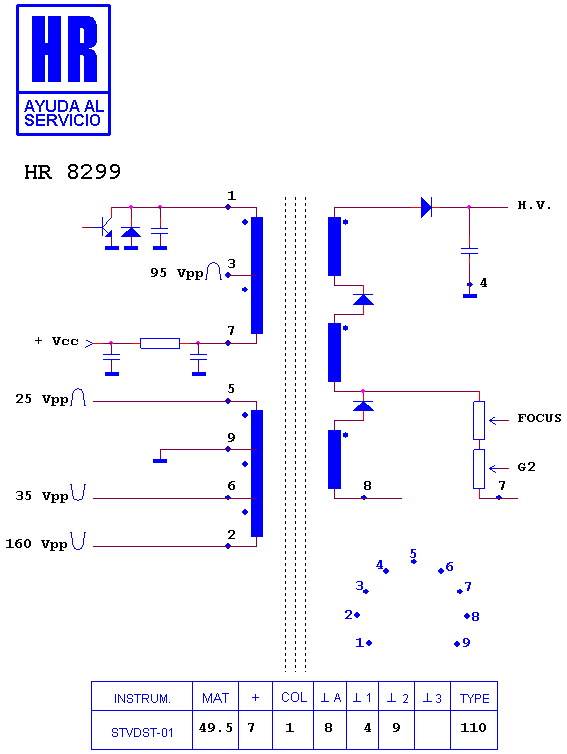

Schematic diagram for HR 8299
schematic (archived)

Manufacturer equivalents (4)

FAT3980 · ME/6185-00 · TLF14597B · TLF14597E

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46262 · HR 8084 · HR 7875 · HR 8046 · HR 7715 · HR 6166 · HR 6589 · HR 8741 · HR 6534 · HR 7631 · HR 7632 · HR 7923

Fitted to (1)

PANASONIC - MATSUSHITA TX C 28 DR
