HR 8311

26.1 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

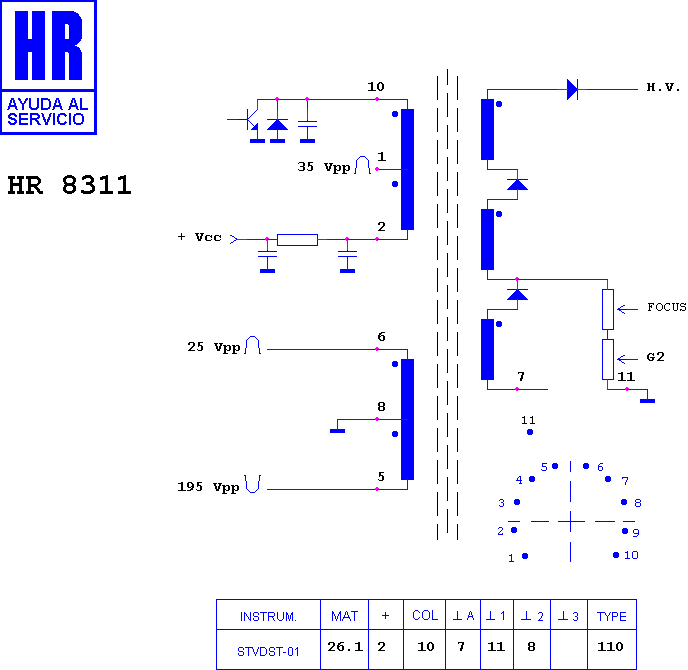

Schematic diagram for HR 8311
schematic
Schematic diagram for HR 8311
schematic (archived)

Manufacturer equivalents (1)

8311-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7923 · HR 8832 · HR 7625 · HR 7689 · HR 8572 · HR 7465 · HR 46241 · HR 8604 · HR 6514 · HR 8024 · HR 8299 · HR 7875

Fitted to (2)

SIVIT MONITOR · SIVIT SL 100012300
