HR 7942

4 windings

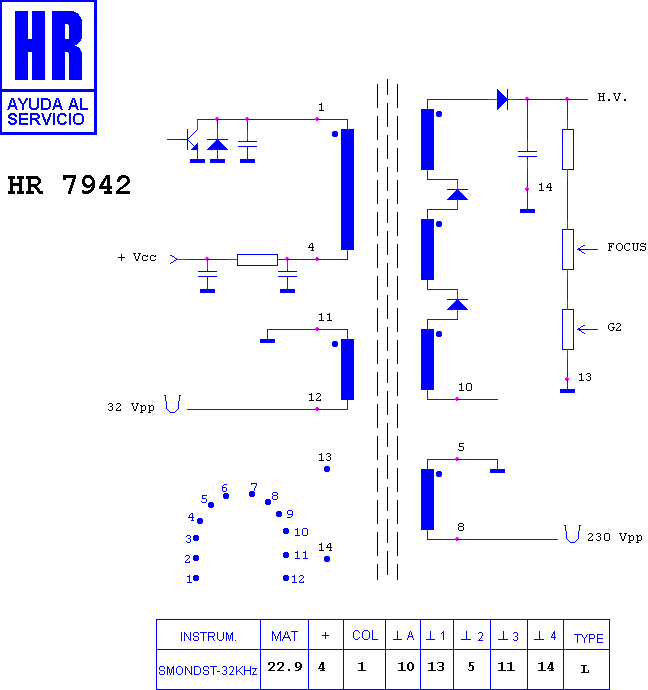

Schematic diagram for HR 7942
schematic

Manufacturer equivalents (1)

HR 7942-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8180 · HR 7528 · HR 6202 · HR 7342 · HR 46198 · HR 46246 · HR 7540 · HR 46256 · HR 8034 · HR 8530 · HR 5805 · HR 8478

Fitted to (2)

IBERO-SHON - IBEROPHON MONITOR · IBERO-SHON - IBEROPHON VGA
