HR 7342

type ST · family 1AP2 · 21.4 kV maximum anode voltage · 90° deflection · 4 windings · 322 g

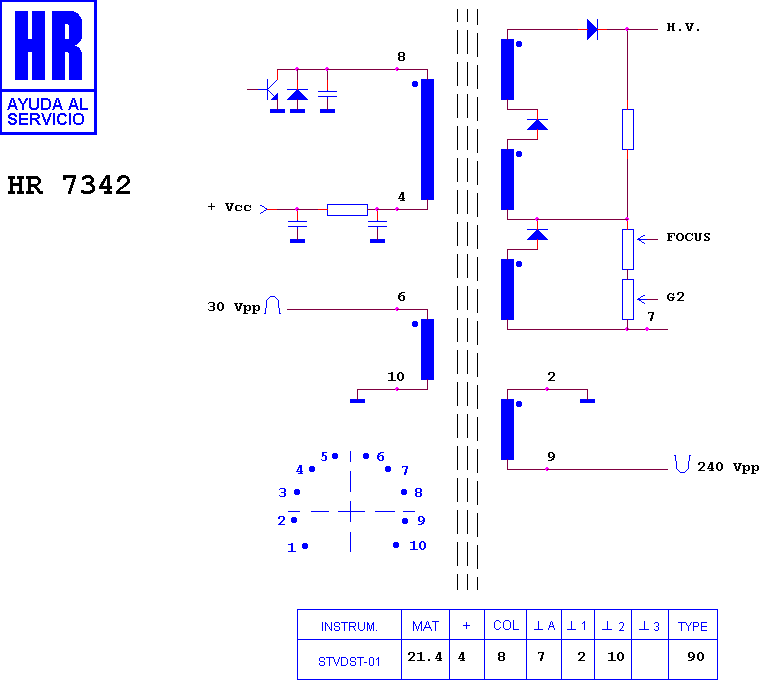

Schematic diagram for HR 7342
schematic

Manufacturer equivalents (6)

1105.0977 · 46 200 1020 · 51324100 · 52 399 0671 · 52 399 0673 · ME/6241-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8072 · HR 8478 · HR 6042 · HR 6191

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

BRION VEGA ALGOL · BRION VEGA ALGOR 11" · BRION VEGA TVC 11 R
