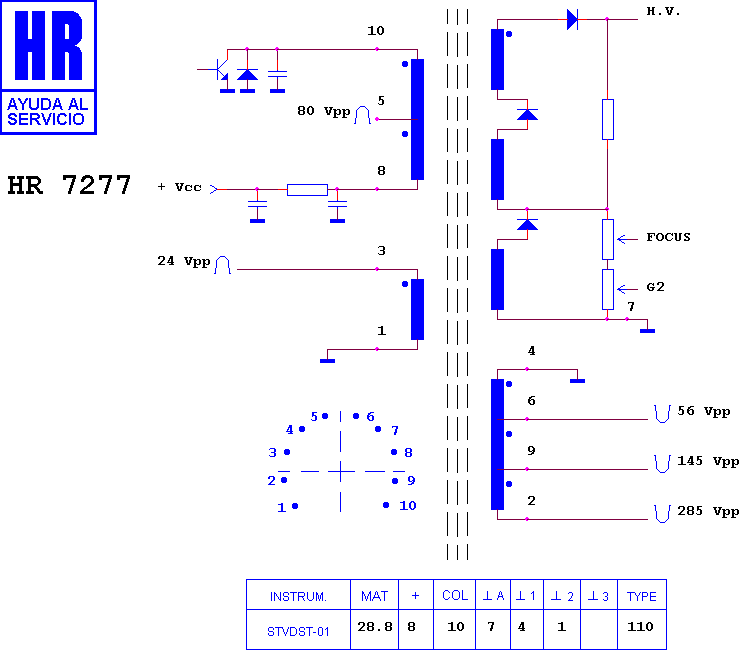

HR 7277

type ST · family 1AP1 · 28.8 kV maximum anode voltage · 110° deflection · 4 windings · 336 g

Manufacturer equivalents (4)

AFS 210 · T 72 · T 90.4 · TVL 201

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8832 · HR 7342 · HR 6634 · HR 8055 · HR 6244 · HR 6465 · HR 6185 · HR 7398

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

BIAZET 2501 ST · ELEMIS 5610 · ELEMIS 6310 · ELEMIS 6311
