HR 8832

49.5 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

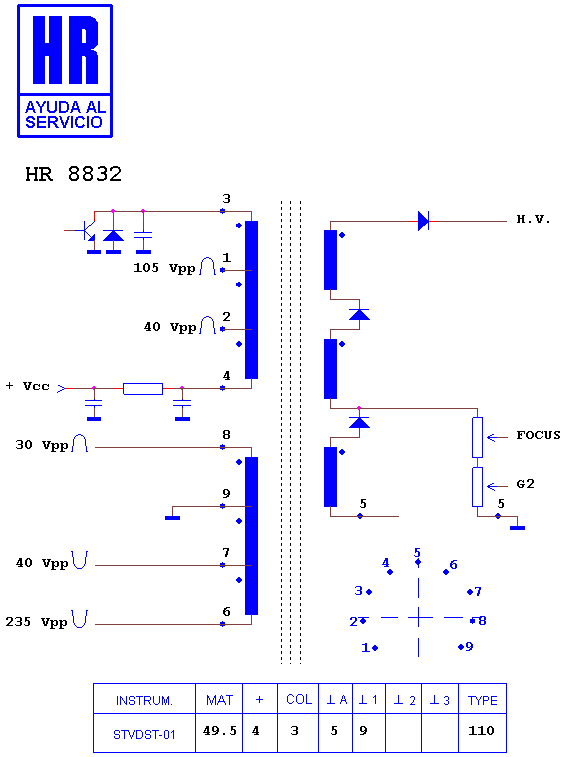

Schematic diagram for HR 8832
schematic (archived)

Manufacturer equivalents (2)

TLF14558B · TLF14558F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7625 · HR 8311 · HR 7398 · HR 7277 · HR 46241 · HR 7689 · HR 6031 · HR 7923 · HR 7465 · HR 8530 · HR 6244 · HR 8604

Fitted to (5)

NATIONAL 674 · NATIONAL CN 674 · NATIONAL TC 2657 · PANASONIC - MATSUSHITA CN 674 · PANASONIC - MATSUSHITA TC 2657
