HR 46241

39.6 kV maximum anode voltage · 110° deflection · 3 windings · 461 g

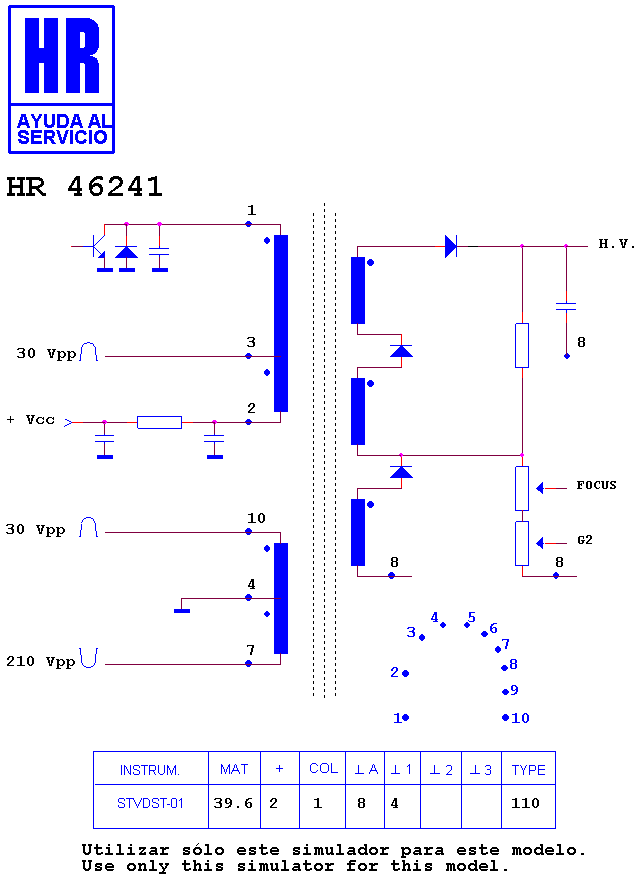

Schematic diagram for HR 46241
schematic (archived)

Manufacturer equivalents (2)

200-5124-01 · MSU-1FDR18

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8572 · HR 8832 · HR 7625 · HR 8024 · HR 5803 · HR 7923 · HR 8530 · HR 5805 · HR 6202 · HR 8311 · HR 7398

Fitted to (11)

S E 14 Z 21 · S E MONITOR · S E MONITOR · S E ROYAL ASCOTT · SANWA CC 1325 DS · SANWA CC 1325 DS-1J5 · SANWA MONITOR · SANWA MONITOR · TOSHIBA E 2971 B 22 · TOSHIBA E 2971 B 22 · TOSHIBA MONITOR

Search this part in the full database
