HR 7625

44.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

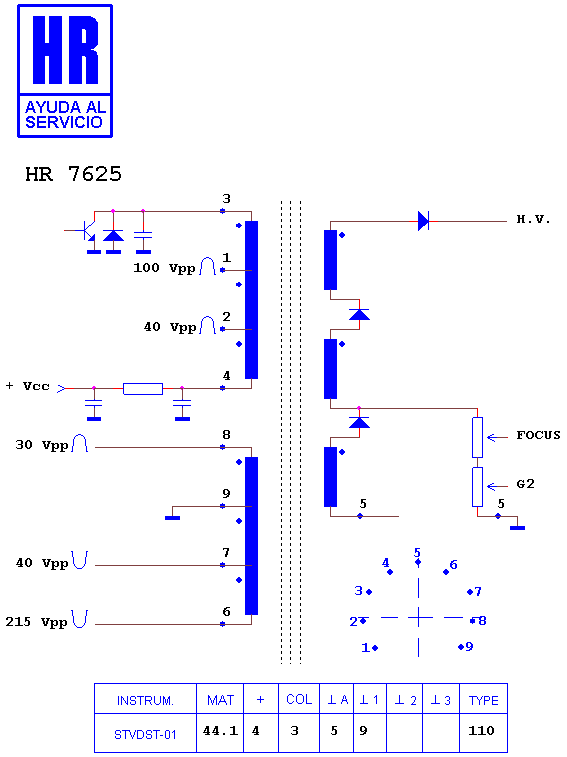

Schematic diagram for HR 7625
schematic (archived)

Manufacturer equivalents (3)

TLF14565B · TLF14565B1 · TLF14565F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8832 · HR 7398 · HR 8311 · HR 7689 · HR 7465 · HR 7923 · HR 6031 · HR 8046 · HR 6244 · HR 6043 · HR 46241 · HR 6514

Fitted to (2)

NATIONAL TC 2037 · PANASONIC - MATSUSHITA CN 514
