HR 7631

type ST · family 1XP1 · 24.3 kV maximum anode voltage · 110° deflection · 4 windings · 260 g

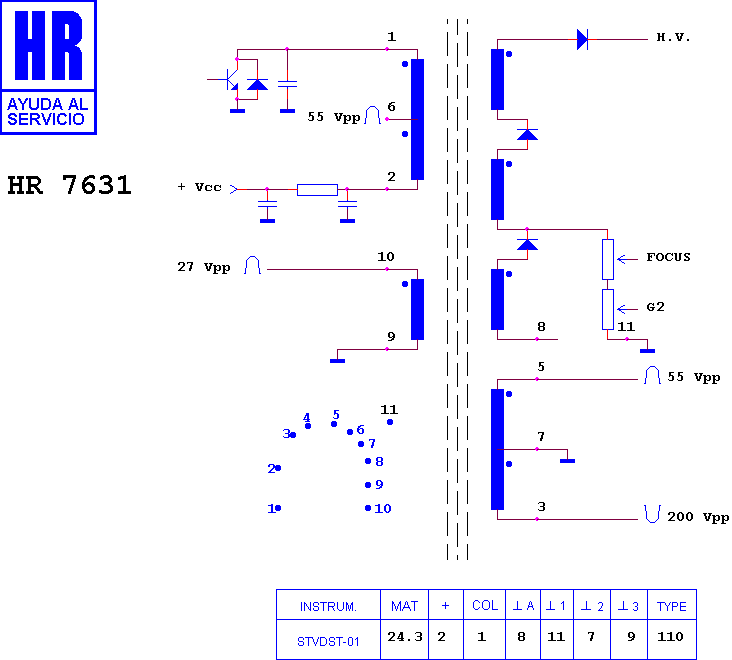

Schematic diagram for HR 7631
schematic

Manufacturer equivalents (3)

334 B 08108 · 334 B 081080 · FAT30746

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7632 · HR 8287 · HR 6507 · HR 6511 · HR 6514 · HR 6534 · HR 8046 · HR 6568 · HR 7436 · HR 7363 · HR 7003 · HR 7465

Fitted to (1)

MITSUBISHI CT 2553 EPST
