HR 7632

type ST · family 1XP1 · 26.4 kV maximum anode voltage · 110° deflection · 4 windings · 260 g

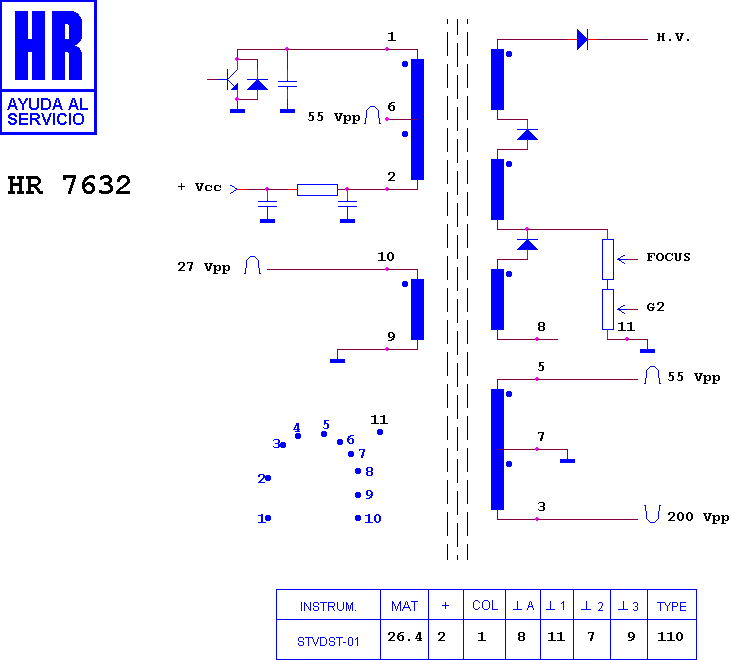

Schematic diagram for HR 7632
schematic

Manufacturer equivalents (3)

334 P 18508 · 334 P 185080 · FAT30739

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8287 · HR 7631 · HR 6511 · HR 6514 · HR 6534 · HR 8046 · HR 6568 · HR 7436 · HR 7363 · HR 7465 · HR 7366 · HR 8940

Fitted to (1)

MITSUBISHI CT 2553 EPNT
