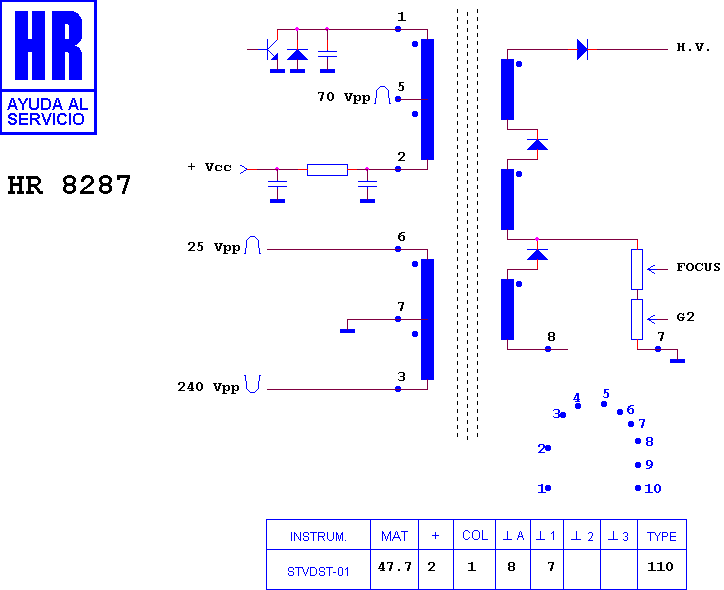

HR 8287

type ST · family 1YP · 47.7 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

FAT 30646 · ZTFH 65008 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7631 · HR 7632 · HR 80041 · HR 8940 · HR 7003 · HR 6248 · HR 7381 · HR 7382 · HR 6389 · HR 6503 · HR 6507 · HR 6500

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (36)

PANASONIC - MATSUSHITA 25 MD 2 · PANASONIC - MATSUSHITA CHASIS EURO 2 · PANASONIC - MATSUSHITA CHASIS EURO 2 L · PANASONIC - MATSUSHITA CHASIS EURO 2 M · PANASONIC - MATSUSHITA TC 25 MD 2 · PANASONIC - MATSUSHITA TX 21 MD 1 E · PANASONIC - MATSUSHITA TX 25 D 1 · PANASONIC - MATSUSHITA TX 25 D 1 E · PANASONIC - MATSUSHITA TX 25 D 1 M · PANASONIC - MATSUSHITA TX 25 MD 1 · PANASONIC - MATSUSHITA TX 25 MD 1 B · PANASONIC - MATSUSHITA TX 25 MD 1 C · PANASONIC - MATSUSHITA TX 25 MD 1 E · PANASONIC - MATSUSHITA TX 25 MD 1 M · PANASONIC - MATSUSHITA TX 25 MD 2 · PANASONIC - MATSUSHITA TX 25 MD 2 C · PANASONIC - MATSUSHITA TX 25 MD 2 E · PANASONIC - MATSUSHITA TX 25 MD 3 · PANASONIC - MATSUSHITA TX 25 MD 3 C · PANASONIC - MATSUSHITA TX 25 MD 3 E · PANASONIC - MATSUSHITA TX 25 MD 3 F · PANASONIC - MATSUSHITA TX 25 MD 3 P · PANASONIC - MATSUSHITA TX 28 LD 1 · PANASONIC - MATSUSHITA TX 28 LD 1 C · PANASONIC - MATSUSHITA TX 28 LD 1 D · PANASONIC - MATSUSHITA TX 28 LD 1 E · PANASONIC - MATSUSHITA TX 28 LD 1 M · PANASONIC - MATSUSHITA TX 28 LD 2 C · PANASONIC - MATSUSHITA TX 28 LD 5 E · PANASONIC - MATSUSHITA TX 28 LD 7 C · PANASONIC - MATSUSHITA TX 28 LD SE · PANASONIC - MATSUSHITA TX 28 MD 3 · PANASONIC - MATSUSHITA TX 28 MD 3 C · PANASONIC - MATSUSHITA TX 28 MD 3 E · PANASONIC - MATSUSHITA TX 28 MD 3 F · PANASONIC - MATSUSHITA TX 28 MD 3 P
