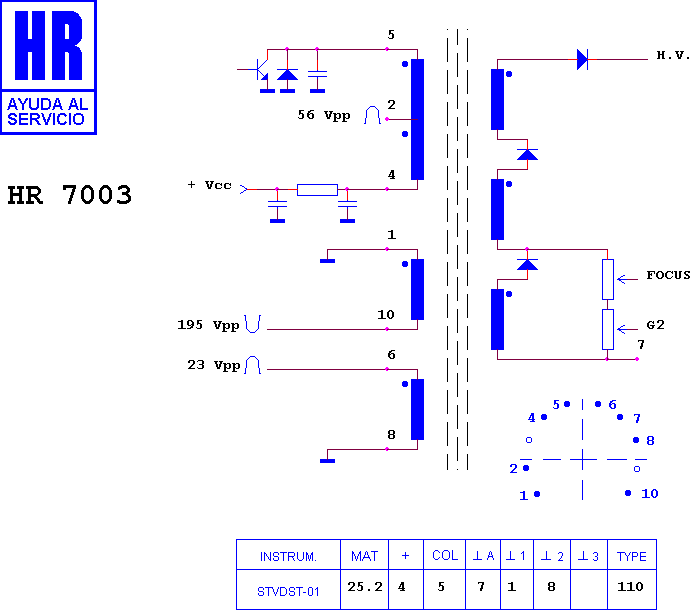

HR 7003

25.2 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

Manufacturer equivalents (1)

HR7003

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8940 · HR 7436 · HR 6511 · HR 6248 · HR 8287 · HR 7381 · HR 7382 · HR 7632 · HR 6534 · HR 6514 · HR 7279 · HR 8604

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
