HR 7382

type ST · family 1ACP · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 392 g

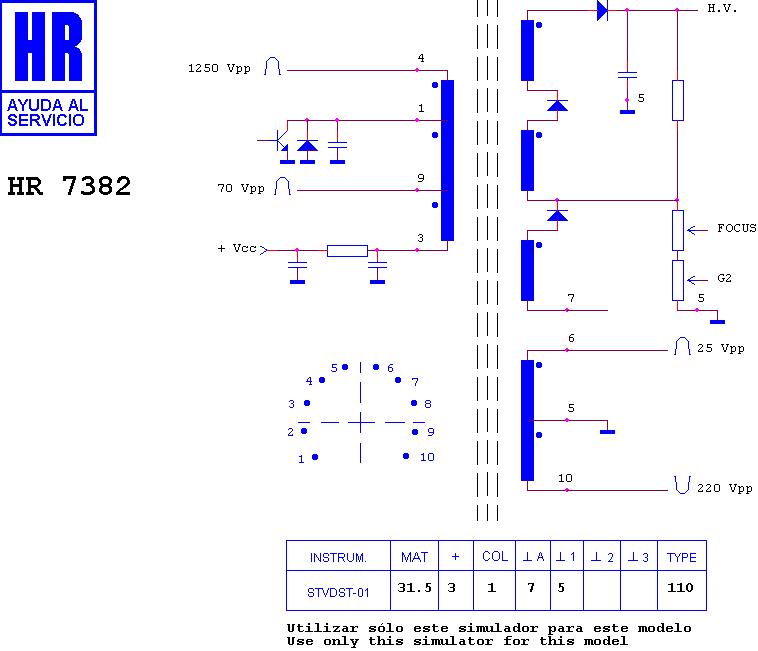

Schematic diagram for HR 7382
schematic

Manufacturer equivalents (4)

25186005 · 31100060 · 4-013-002 · S 31100060

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7091 · HR 7381 · HR 8004 · HR 7123 · HR 8940 · HR 80041 · HR 8287 · HR 8923 · HR 6676 · HR 8604 · HR 6568 · HR 6169

Fitted to (2)

INTERVIDEO MG 28" 25 KHZ · INTERVIDEO MONITOR
