HR 7123

type ST · family 1NP1 · 24.3 kV maximum anode voltage · 110° deflection · 2 windings · 278 g

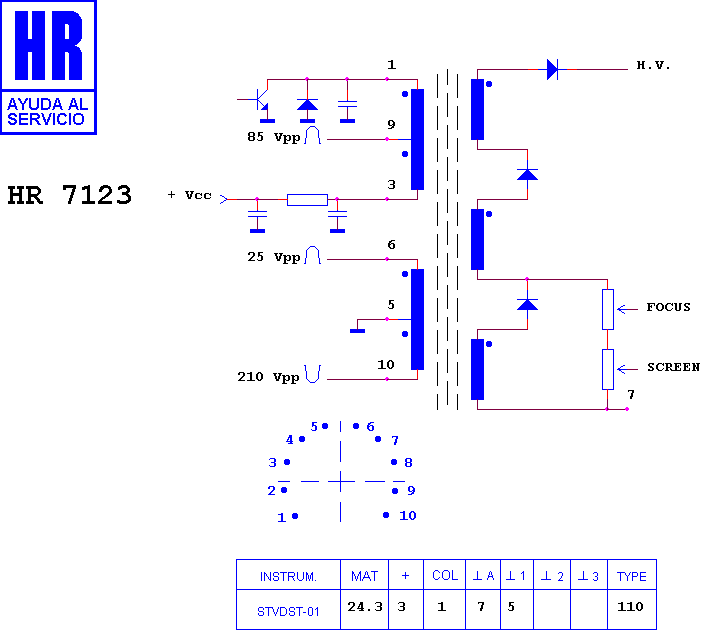

Schematic diagram for HR 7123
schematic

Manufacturer equivalents (1)

HR 7123

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7091 · HR 7369 · HR 7381 · HR 7382 · HR 8004 · HR 7436 · HR 8497 · HR 8923 · HR 7358 · HR 7117 · HR 80141 · HR 6237

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
