HR 8004

type ST · family 1AP1 · 30.5 kV maximum anode voltage · 110° deflection · 3 windings · 360 g

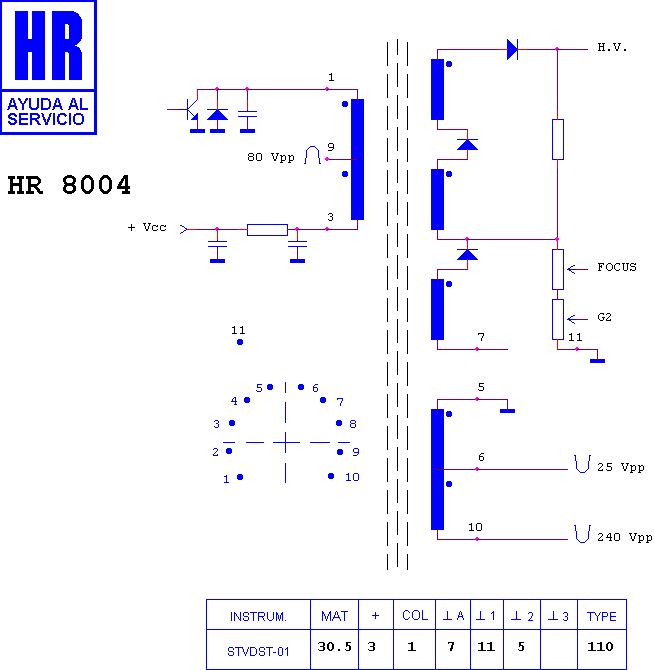

Schematic diagram for HR 8004
schematic

Manufacturer equivalents (5)

1105.0948 · 1192.0338 · 1362.3043 · 341007 · 341079

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7381 · HR 7382 · HR 7091 · HR 7123 · HR 80041 · HR 8287 · HR 8940 · HR 8923 · HR 8673 · HR 6676 · HR 8929 · HR 6169
