HR 7091

type ST · family 1AP2 · 34.2 kV maximum anode voltage · 110° deflection · 3 windings · 320 g

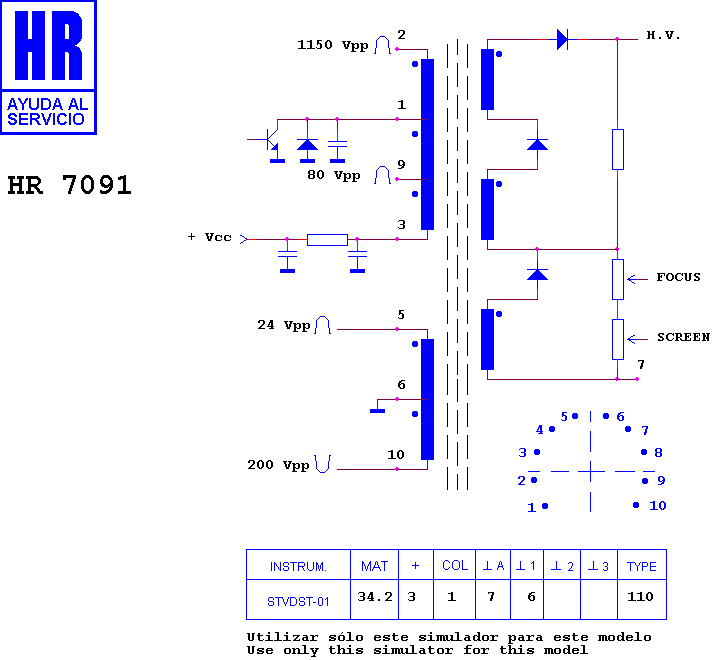

Schematic diagram for HR 7091
schematic

Manufacturer equivalents (3)

1105.0718 · 28025190 · ME/6290-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7123 · HR 7369 · HR 7381 · HR 7382 · HR 7436 · HR 8004 · HR 8923 · HR 80141 · HR 8577 · HR 6000 · HR 8673 · HR 8679

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
