HR 8929

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

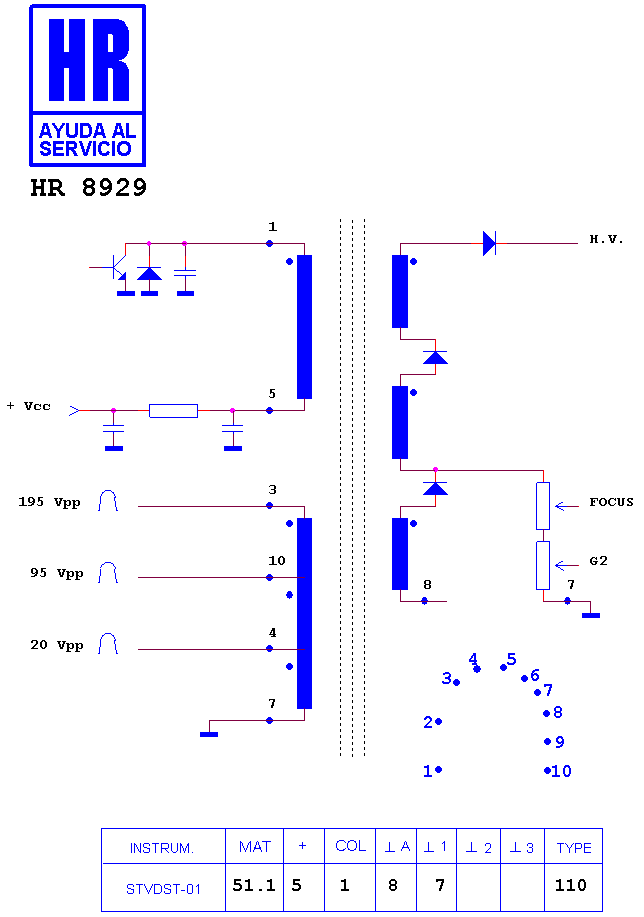

Schematic diagram for HR 8929
schematic (archived)

Manufacturer equivalents (2)

BSC28-0731 · LTF00CPP1019

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5644 · HR 8577 · HR 5708 · HR 8673 · HR 8679 · HR 8413 · HR 8474 · HR 6218 · HR 7712 · HR 8444 · HR 7369 · HR 8497

Fitted to (3)

FUNAI SST 4322 · SYLVANIA BL 6250 F · SYLVANIA BL 6250 F 01012-1

Search this part in the full database
