HR 8444

type ST · family 1XP1 · 26.7 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

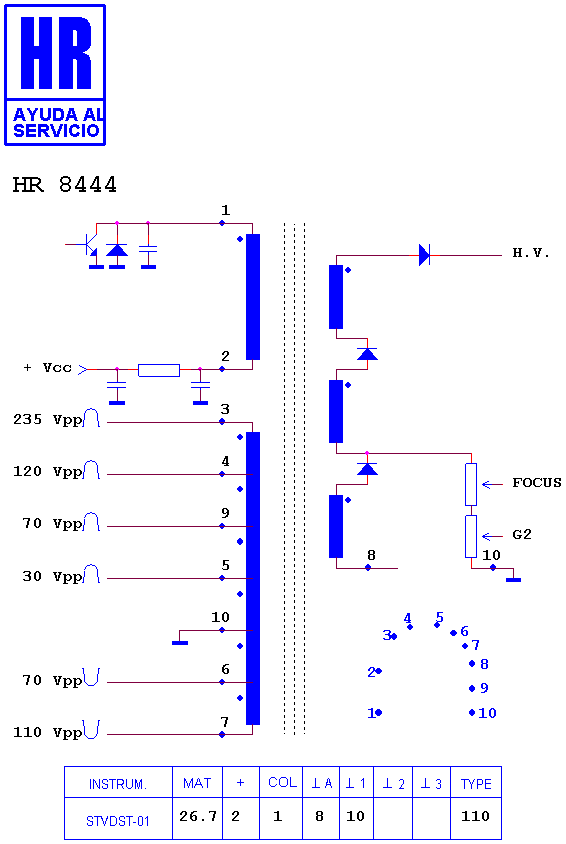

Schematic diagram for HR 8444
schematic

Manufacturer equivalents (5)

106646.90 · 2422 531 02421 · 40348-08 · 40348A-08 · 531 02421

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8679 · HR 8905 · HR 8577 · HR 8474 · HR 8923 · HR 8413 · HR 7369 · HR 5804 · HR 8929 · HR 7295 · HR 6218 · HR 8673

Fitted to (1)

PHILIPS 25 PT 4455/20
