HR 7295

type ST · family 1AP1 · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

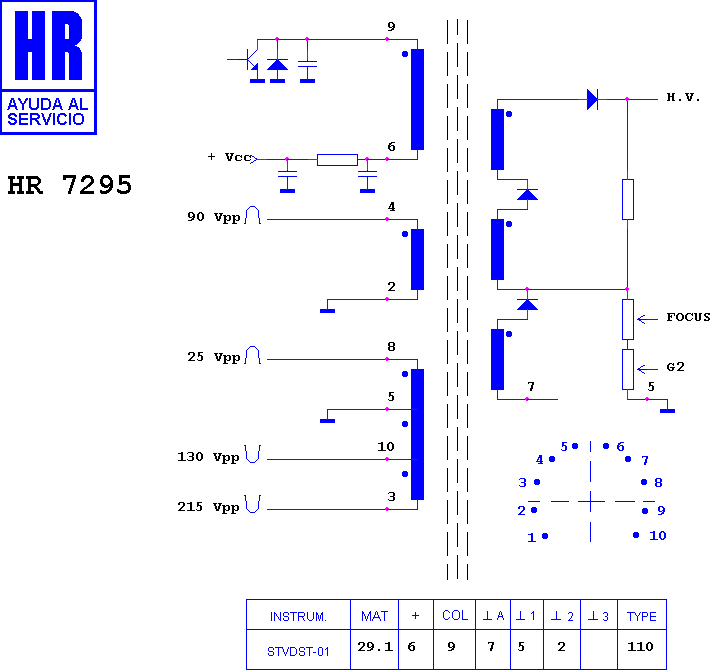

Schematic diagram for HR 7295
schematic

Manufacturer equivalents (7)

003311136 · 4470038 · 4515 05 11 · FAT30441 · M 12-10 · RO 434 · TR 434

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8577 · HR 8474 · HR 5804 · HR 6176 · HR 6218 · HR 8905 · HR 6676 · HR 6489 · HR 8060 · HR 8673 · HR 8929 · HR 7369

Fitted to (1)

ENIE ENIVISION 71
