HR 7119

type ST · family 1NP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

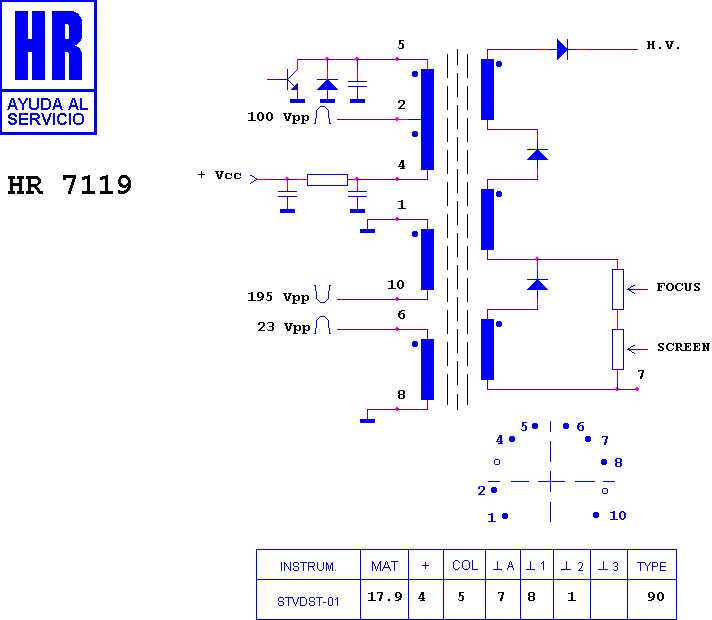

Schematic diagram for HR 7119
schematic

Manufacturer equivalents (3)

32321.00 · 8804.0061/7 · HR 7119

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7512 · HR 7011 · HR 7412 · HR 7138 · HR 8536 · HR 7553 · HR 6112 · HR 7443 · HR 7565 · HR 7589 · HR 7372 · HR 7161

Search this part in the full database
