HR 7161

type ST · family 1NP1 · 19.3 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

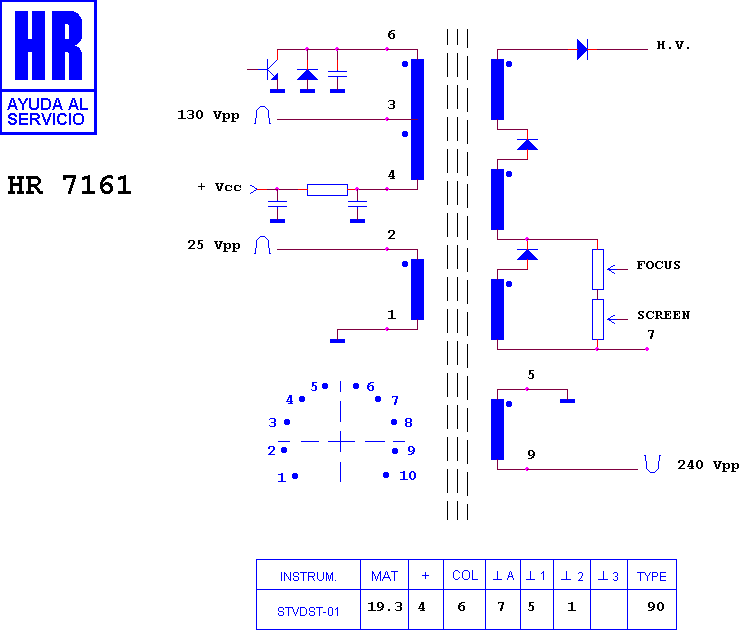

Schematic diagram for HR 7161
schematic

Manufacturer equivalents (2)

472637.00 · TR 7331

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6028 · HR 7604 · HR 7163 · HR 8394 · HR 8760 · HR 7443 · HR 8715 · HR 7900 · HR 8536 · HR 7947 · HR 8784 · HR 8159

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

BAIRD 1487 · BAIRD 47263700 · BAIRD RR 1487 · DECCA COLOUR 160 MINI · DECCA COLOUR DT 8676 · DECCA COLOUR TV 1610 · FERGUSON-THORN-EMI TR 7322 · FERGUSON-THORN-EMI TR 7331 · TASHIKO 14 F 891 · TASHIKO 16 E 891 · TATUNG 160 MINI · TATUNG DT 8676 · TATUNG RR 1487 · TATUNG TV 1610
