HR 8159

type ST · family 1AP1 · 23.1 kV maximum anode voltage · 90° deflection · 3 windings · 360 g

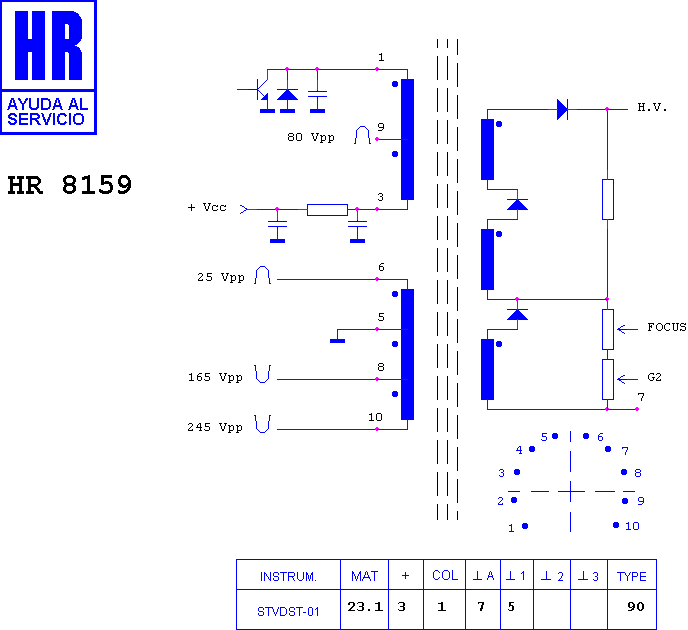

Schematic diagram for HR 8159
schematic

Manufacturer equivalents (2)

21096001 · 4-018-001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7508 · HR 7509 · HR 8760 · HR 7929 · HR 8378 · HR 7914 · HR 8661 · HR 7795 · HR 6588 · HR 8715 · HR 7163 · HR 8239

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
