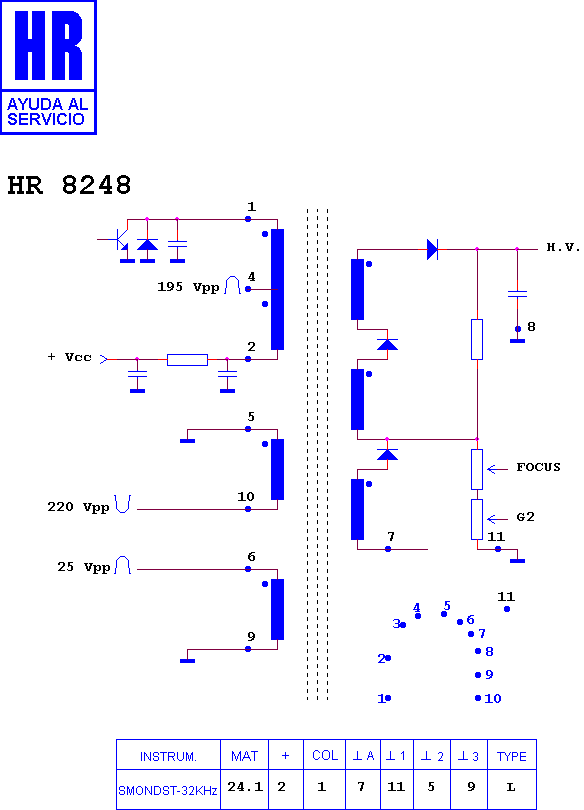

HR 8248

type SM · family 1VCP · 24.1 kV maximum anode voltage · L° deflection · 4 windings · 389 g

Manufacturer equivalents (1)

FCO 14 A 028

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7246 · HR 46179 · HR 6609 · HR 8219 · HR 8174 · HR 6606 · HR 46170 · HR 6600

Fitted to (2)

COMPAQ 420 SC · COMPAQ MONITOR
