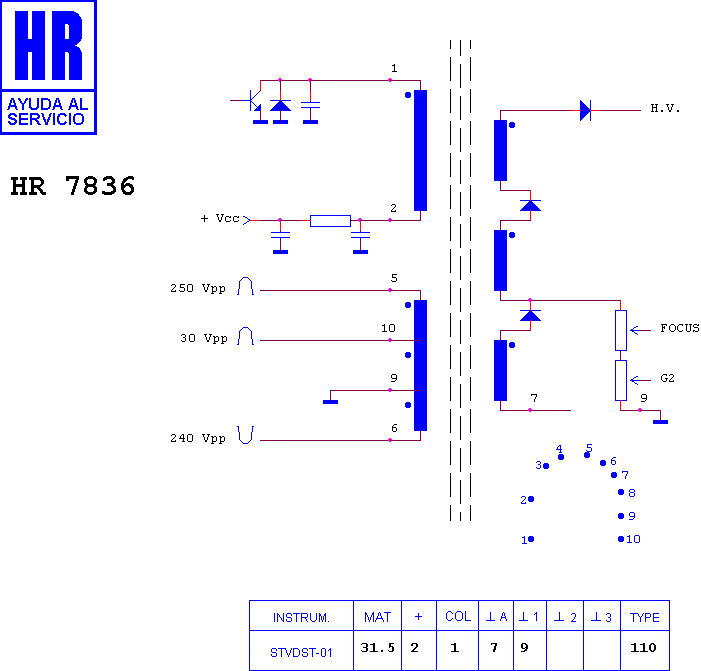

HR 7836

type ST · family 1YP · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

Manufacturer equivalents (2)

2436792 · J 2436792

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7835 · HR 80017 · HR 7821 · HR 7768 · HR 6258 · HR 6728 · HR 8060 · HR 8919 · HR 8776 · HR 8878 · HR 7344 · HR 8011

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

HITACHI CL 2560 RA · HITACHI CL 2860 · HITACHI CL 2860 TA
