HR 8776

40.8 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

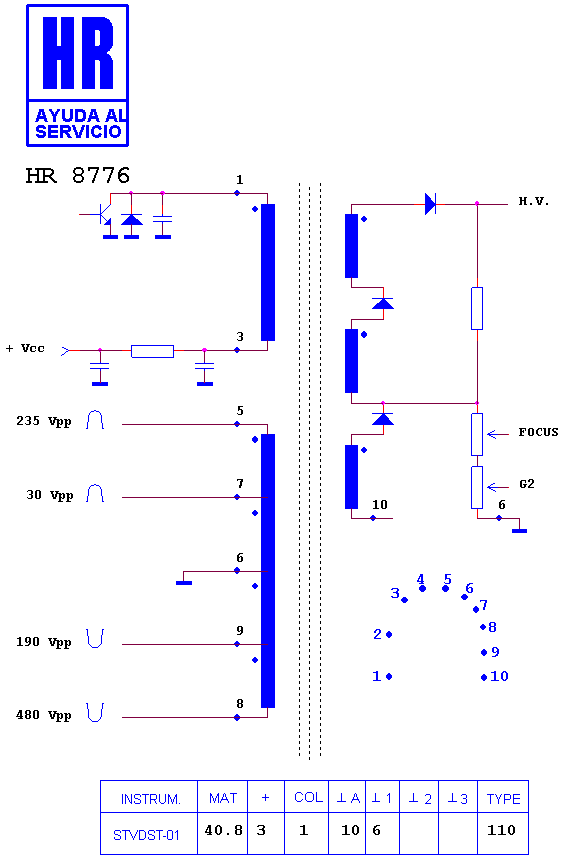

Schematic diagram for HR 8776
schematic (archived)

Manufacturer equivalents (3)

AA26-30005E · FTK21B003 · FTK21B003S

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8060 · HR 7389 · HR 8699 · HR 5721 · HR 8919 · HR 8878 · HR 6489 · HR 6728 · HR 5809 · HR 80017 · HR 7821 · HR 7192

Fitted to (5)

SAMSUNG CHASIS KCT 57 A · SAMSUNG CN 565 BW · SAMSUNG CT 566 BV · SAMSUNG CT 567 B · SAMSUNG CT 567 BW
