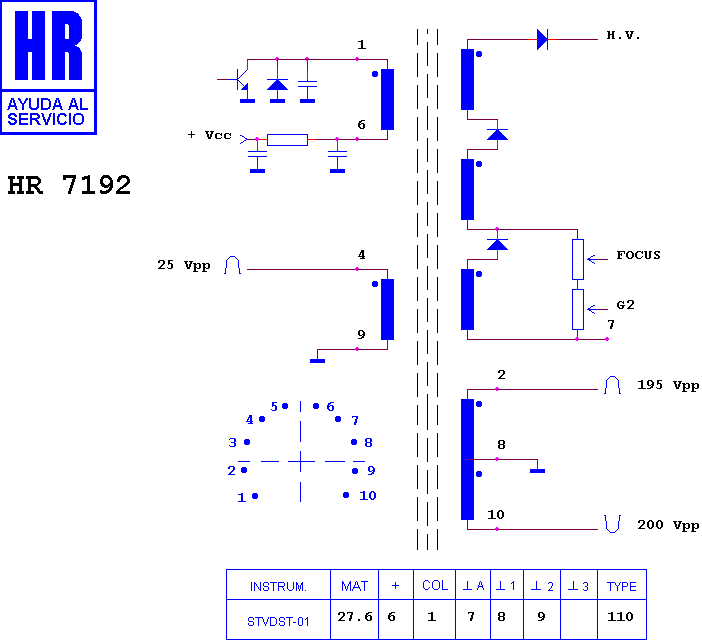

HR 7192

type ST · family 1NP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

Manufacturer equivalents (1)

154 174 E

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7821 · HR 80017 · HR 5808 · HR 7836 · HR 7835 · HR 8027 · HR 6258 · HR 8248 · HR 8009 · HR 6489 · HR 6563 · HR 7929

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
