HR 6258

type ST · family 1BP1 · 31.8 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

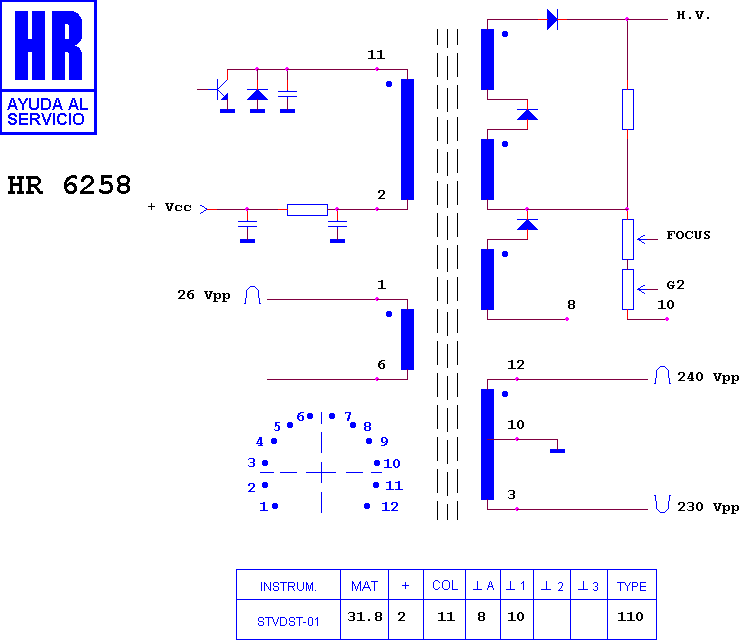

Schematic diagram for HR 6258
schematic

Manufacturer equivalents (2)

34304.00 · 34304.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6559 · HR 6229 · HR 8919 · HR 7835 · HR 8009 · HR 8878 · HR 6728 · HR 80017 · HR 7344 · HR 8011 · HR 8970 · HR 8060

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
