HR 80220

25.1 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

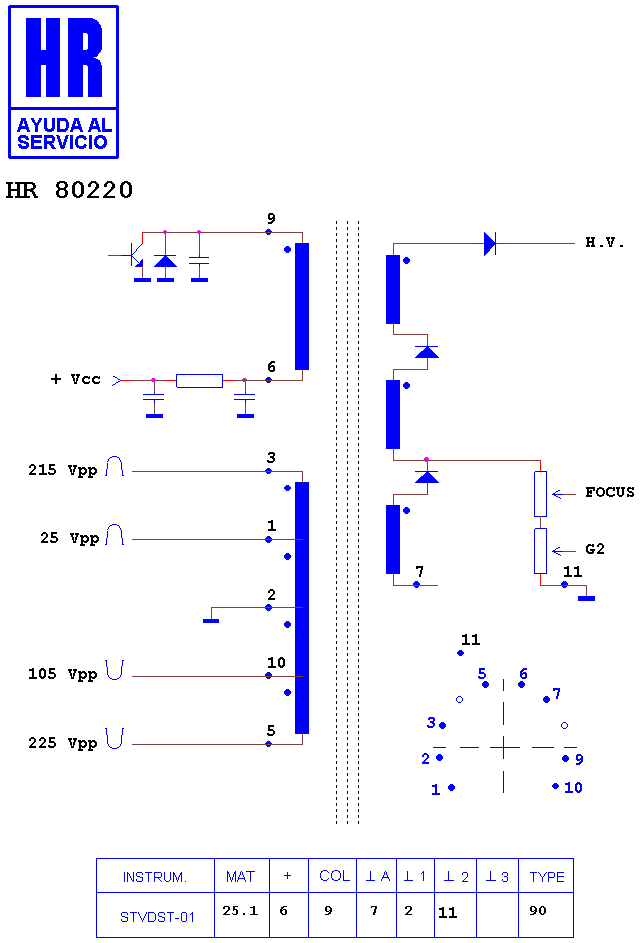

Schematic diagram for HR 80220
schematic (archived)

Manufacturer equivalents (14)

003071016 · 058.135EL2 · 058.135R-E2 · 058.135R-T2 · 058.135TR2 · 058.835TR2 · 1142.1834 · 1142.1834A · 1142.1834R · 2416003071016 · 3071016 · HR 80220 · RO942 · TR942

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7914 · HR 8058 · HR 5721 · HR 7935 · HR 8378 · HR 7203 · HR 7351 · HR 80292 · HR 8426 · HR 7229 · HR 8264 · HR 7941

Fitted to (9)

BEKO - BEKOTEKNIK CHASIS 16.1 21 · GRUNDIG 55-2401/7 TOP · GRUNDIG MF 55-2401/7 TOP · GRUNDIG SUPER COLOR MF · IRRADIO XTC 2180 PS · PHC CRT 21 · SCHNEIDER NR SRF 2108 T · SCHNEIDER SRF 2108 T · TENSAI TCT 21300 PF
