HR 8058

type ST · family 1NP1 · 25.2 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

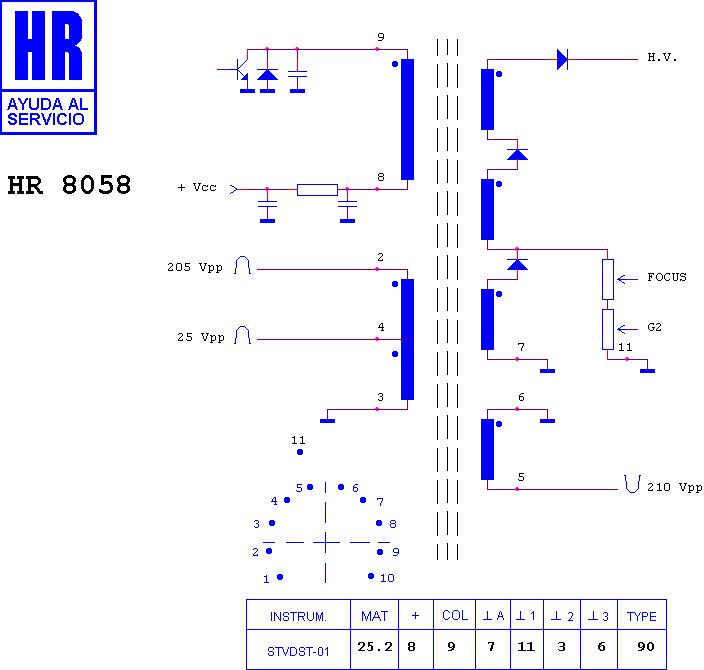

Schematic diagram for HR 8058
schematic

Manufacturer equivalents (3)

105601.80 · 10560180.P1 · 40331-51

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7914 · HR 7941 · HR 8661 · HR 8064 · HR 7935 · HR 8378 · HR 7203 · HR 8264 · HR 8426 · HR 7714 · HR 80220 · HR 80292

Fitted to (9)

ELBE 20 B 200 · KENDO CT 99 M 51 VT · KENDO STV 2030 · KNEISSEL CHASIS CP 3 · KNEISSEL CHASIS CP 4 · KNEISSEL CHASIS DEROG 65 · KNEISSEL KN 2013 · KNEISSEL KN 2018 TXT · KNEISSEL KN 2118 TXT
