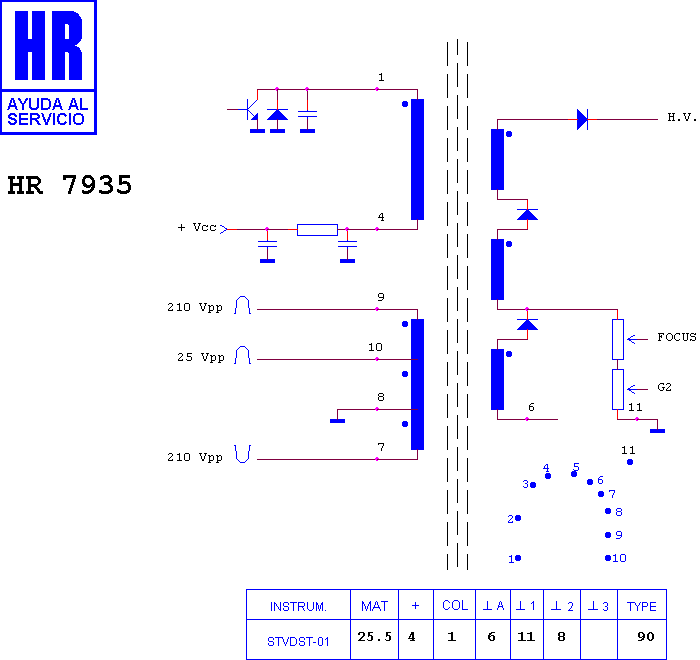

HR 7935

type ST · family 1XP1 · 25.5 kV maximum anode voltage · 90° deflection · 3 windings · 294 g

Manufacturer equivalents (1)

FSA 26013 M

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6258 · HR 7914 · HR 7203 · HR 8248 · HR 8378 · HR 8058 · HR 8264 · HR 8426 · HR 7714 · HR 80220 · HR 80292 · HR 7557
