HR 7714

type ST · family 1YP · 23.5 kV maximum anode voltage · 90° deflection · 3 windings · 374 g

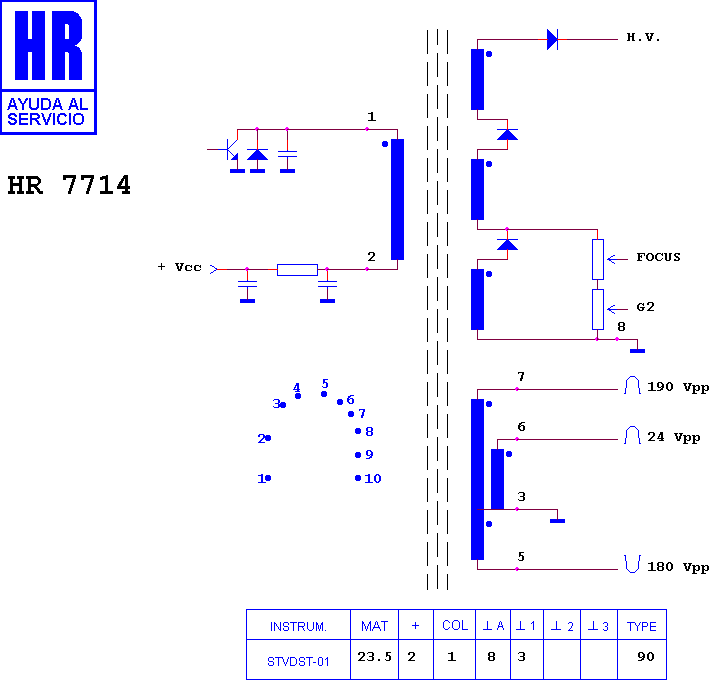

Schematic diagram for HR 7714
schematic

Manufacturer equivalents (4)

TLF 15562 F · TLF15562F1 · TLF15612 · TLF15612F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8378 · HR 8264 · HR 8426 · HR 80292 · HR 8058 · HR 7935 · HR 80220 · HR 7203 · HR 7929 · HR 7557 · HR 6595 · HR 7351

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
