HR 80292

21.1 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

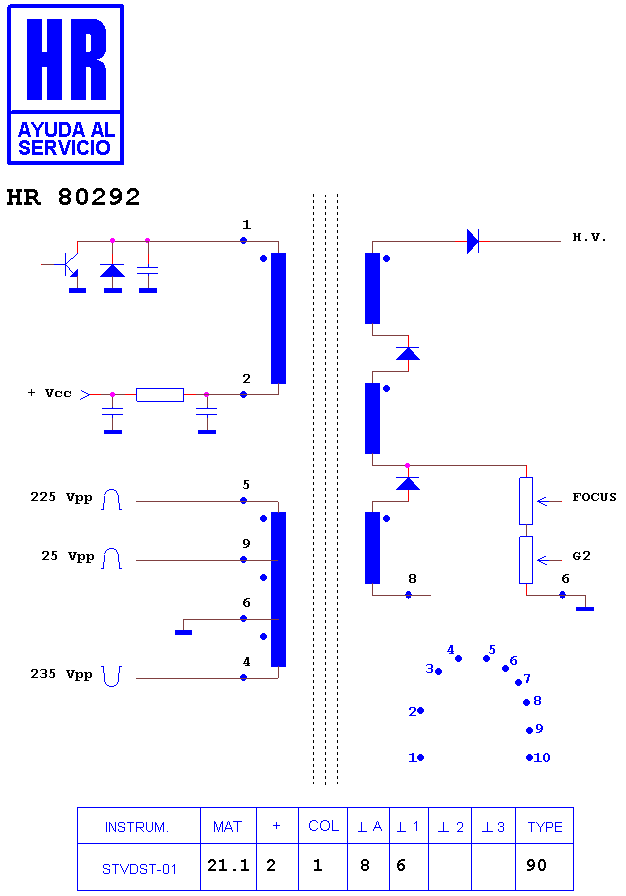

Schematic diagram for HR 80292
schematic (archived)

Manufacturer equivalents (8)

1142.5157 · 1142.51572 · 1142.5157A · 1142.5157B · 1142.7035 · 1142.7035A · 604200000391 · 604200000431

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8426 · HR 7714 · HR 8378 · HR 8264 · HR 7941 · HR 7914 · HR 80220 · HR 8661 · HR 7159 · HR 6686 · HR 7560 · HR 8058

Fitted to (12)

BASIC LINE BST 2104 · BLUE SKY BS 2104 · BLUE SKY BST 2104 · PHILIPS 14 PT 1501 · PHILIPS 14 PT 1501/12 · PHILIPS 14 PT 1501/62 · PHILIPS 25 PT 5402 · PHILIPS 25 PT 5402/01 · PHILIPS CHASIS TE 3.1 E · PHILIPS CHASIS TE 3.1 E AA · PHILIPS CHASIS TE 3.2 E CA · TELRA CHASIS PT 90
