HR 8064

type ST · family 1NP1 · 22.7 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

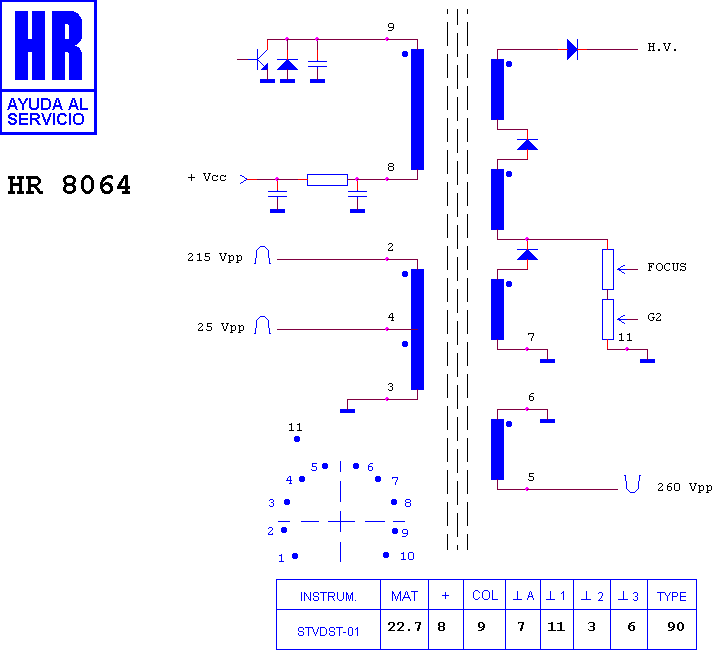

Schematic diagram for HR 8064
schematic

Manufacturer equivalents (4)

105329.20 · 105601.70 · 40331-19 · 40331-50

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8661 · HR 7914 · HR 8058 · HR 7560 · HR 7159 · HR 7941 · HR 8378 · HR 6588 · HR 8159 · HR 80220 · HR 7203 · HR 7230

Fitted to (4)

BLUE SKY BS 5198 · ELBE 14 B 100 · ELBE 14 T 120 · KNEISSEL STV 1453
