HR 7560

type ST · family 1NP · 22.1 kV maximum anode voltage · 90° deflection · 3 windings · 259 g

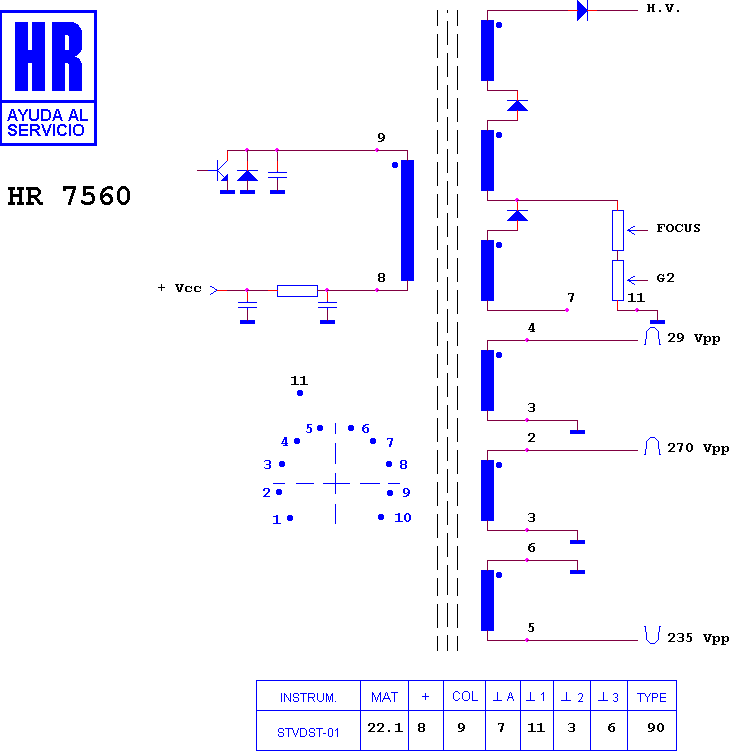

Schematic diagram for HR 7560
schematic

Manufacturer equivalents (2)

1142.0775 · FCV 14 C 003

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8661 · HR 7941 · HR 7914 · HR 8064 · HR 7159 · HR 8378 · HR 80220 · HR 6588 · HR 7508 · HR 6279 · HR 7203 · HR 8159

Fitted to (3)

KAISUI 1402 · KAISUI CHASIS 3915 TH · KAISUI CHASIS 55
