HR 7159

type ST · family 1AP1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 347 g

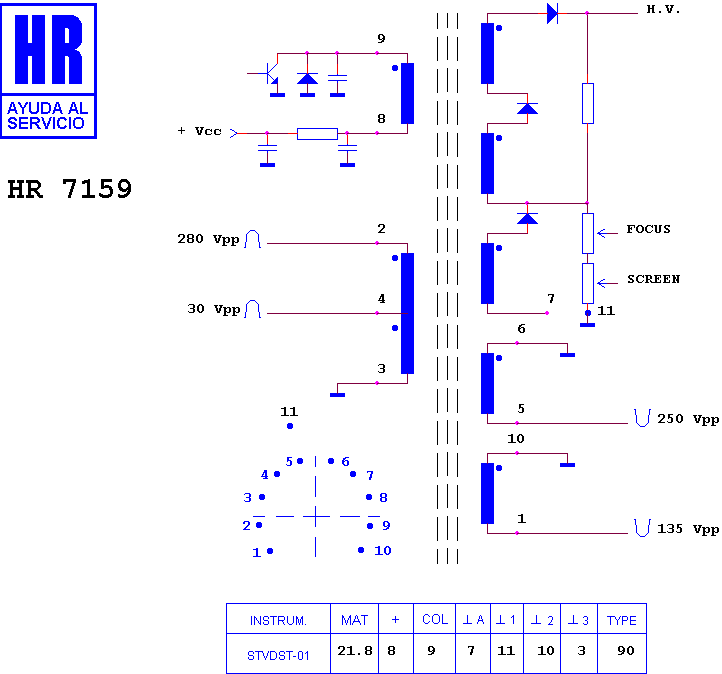

Schematic diagram for HR 7159
schematic

Manufacturer equivalents (14)

1352.3014 · 249.226 · 294.226 · 32302.00 · 32302.50 · 32302.51 · 32336.00 · 35072520 · 470035.64 · 473200.82 · 534 TX 0272 · 534TX0370 · 84230243 · AFS 280

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7560 · HR 8661 · HR 7941 · HR 7914 · HR 8064 · HR 80220 · HR 8378 · HR 7508 · HR 6588 · HR 6279 · HR 8159 · HR 7203

Fitted to (8)

NORDMENDE CHASIS F 20-11 · NORDMENDE GALAXY 51 D · NORDMENDE GALAXY 51 IMC · NORDMENDE GALAXY 51 M · NORDMENDE GALAXY 51 P · NORDMENDE GALAXY 55 SF · SABA M 5105 · THOMSON 21 T 3 TXT
