HR 8238

type ST · family 1NP1 · 25.8 kV maximum anode voltage · 110° deflection · 5 windings · 290 g

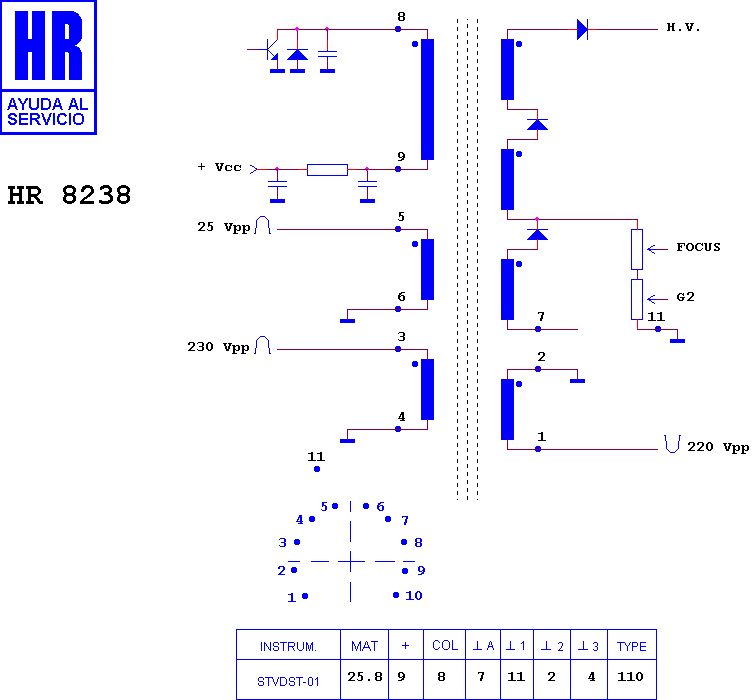

Schematic diagram for HR 8238
schematic

Manufacturer equivalents (7)

1142.1615 · 1142.16150 · 1142.1615A · 4536 00 44 · 4563 00 44 · FAT30781 · HR 8238

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8027 · HR 8009 · HR 5808 · HR 6258 · HR 6572 · HR 8919 · HR 7836 · HR 7835 · HR 5809 · HR 7821 · HR 6728 · HR 80017

Fitted to (2)

AKAI CHASIS MP 2 · NOKIA - ITT CHASIS MP 2
