HR 80017

34.5 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

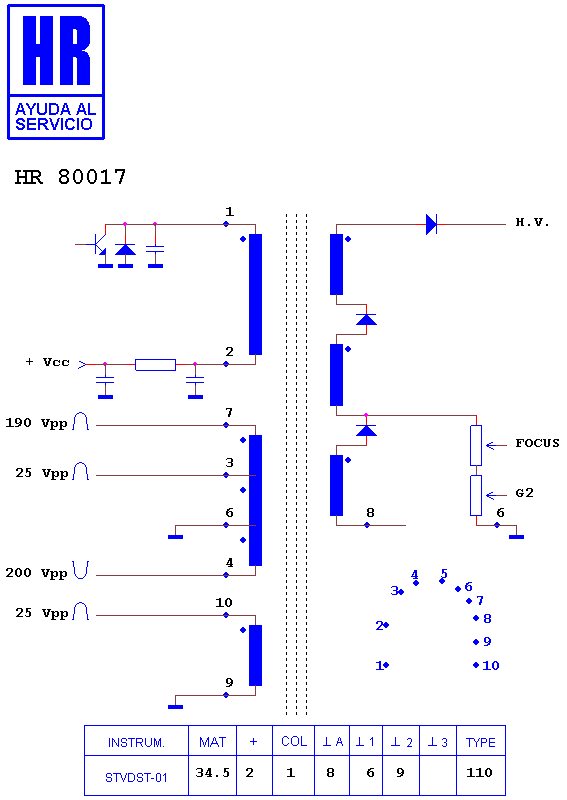

Schematic diagram for HR 80017
schematic (archived)

Manufacturer equivalents (5)

003680260001 · 312121830181 · 368026-0001 · 368026-1 · 483514067157

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7821 · HR 7836 · HR 7835 · HR 7768 · HR 8776 · HR 8919 · HR 8878 · HR 8970 · HR 7192 · HR 8027 · HR 6559 · HR 8238

Fitted to (4)

MAGNAVOX TS 3254 · PHILIPS 33 PT 670 A · PHILIPS CHASIS Z 5 · PHILIPS TS 3254
