HR 7929

type ST · family 1XP1 · 23.8 kV maximum anode voltage · 90° deflection · 3 windings · 294 g

Schematic diagram for HR 7929
schematic

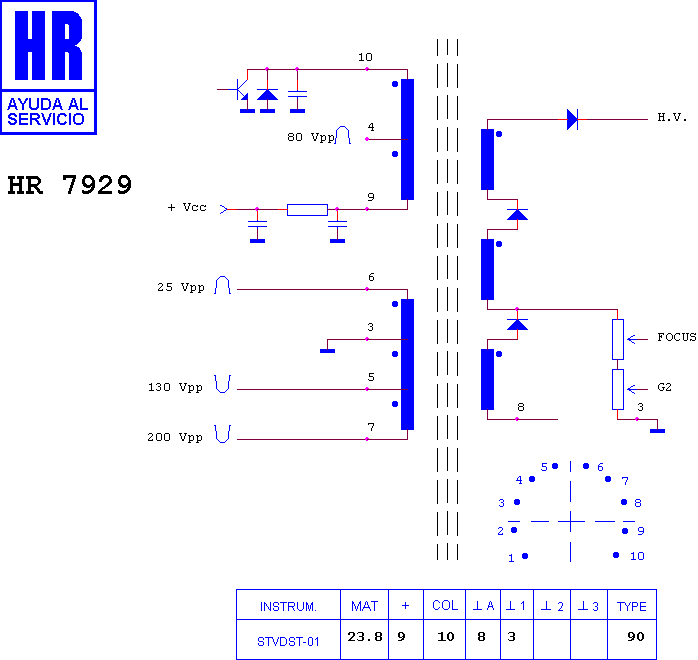

Schematic diagram for HR 7929
pin-out diagram

Manufacturer equivalents (11)

003201007 · 1142.5051 · FAT30397 · FCK14A006 · FCM 2015 HE · FCM14A032 · KFS 60847 · KFS 60847 A · KN30397 · RO 064 · TR 064

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7795 · HR 7443 · HR 8760 · HR 7920 · HR 80060 · HR 8899 · HR 6571 · HR 7203 · HR 8451 · HR 8378 · HR 7586 · HR 8715

Fitted to (20)

CGM TVC 202 NE-20 · CGM TVC 202-20 · CONDOR CTV 5113 · CONDOR CTV 5120 · ELEKTA 2041 EM · ELEKTA CTM 2041 EM · ELEKTA CTR 2041 EM · HARTONO TVC 20" · HCM 5170 · HCM MONITOR · HCM ROYAL TV 5170 · HCM TV 5170 · HYPER HCLT 113-02 SW 20 · HYPER MASTER 20 · LENCO TC 9404 20" · PROTRON TVC 20" · RADIOTONE TV 5102 VT DE LUXE · ROYAL 5170 · ROYAL ROYAL TV 5170 · ROYAL TV 5170
