HR 7795

type ST · family 1XP1 · 20 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

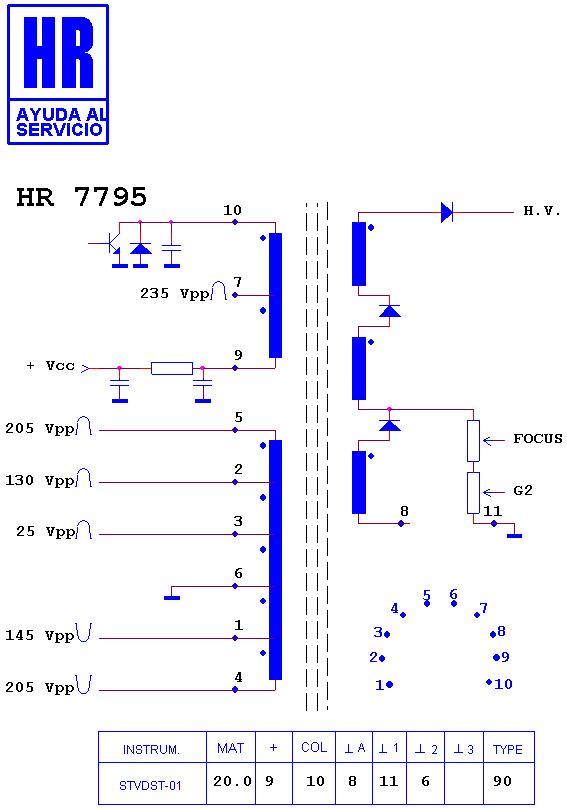

Schematic diagram for HR 7795
schematic

Manufacturer equivalents (5)

101-119000-04 · 32859200040 · AA 26-30001 R · FCM 20 A 025 · FCM20A027

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7929 · HR 7940 · HR 8159 · HR 7158 · HR 6588 · HR 7203 · HR 7586 · HR 8715 · HR 7589 · HR 8378 · HR 8760 · HR 8899

Fitted to (2)

SAMSUNG CI 5061 XA · SAMSUNG CT 5071 CA
