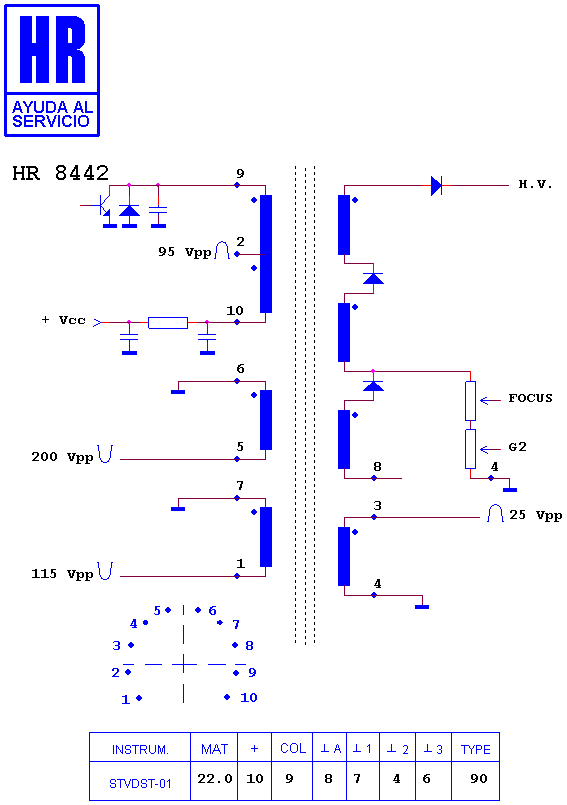

HR 8442

type ST · family 1NP1 · 22 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

Manufacturer equivalents (4)

204529.60 · 204530.90 · 205268.00 · 40332-02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7535 · HR 8715 · HR 8057 · HR 8048 · HR 8466 · HR 8760 · HR 7460 · HR 7736 · HR 7729 · HR 7067 · HR 7501 · HR 7704

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

BRANDT CHASIS TX 91 · FERGUSON-THORN-EMI CHASIS TX 91 · NORDMENDE CHASIS TX 91 · SABA CHASIS TX 91 · TELEFUNKEN CHASIS TX 91 · THOMSON 21 MG 77 · THOMSON 21 MG 77 C · THOMSON CHASIS TX 91
