HR 7067

type ST · family 1AP2 · 24.3 kV maximum anode voltage · 110° deflection · 4 windings · 320 g

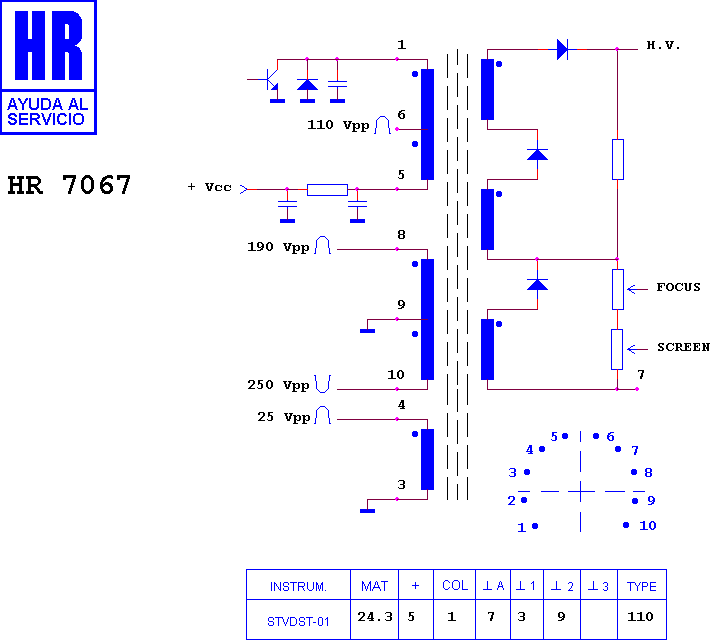

Schematic diagram for HR 7067
schematic

Manufacturer equivalents (7)

038908 · 1105.0327 · 35 296 6009 · FAT3890 · ME/6039-00 · TDS 132 · TDS 132 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7368 · HR 80014 · HR 7701 · HR 8499 · HR 8681 · HR 8406 · HR 8954 · HR 8109 · HR 8456 · HR 6092 · HR 6371 · HR 6359

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

MAGNADYNE 15" 90§ MININECK · RADIOMARELLI 15" 90§ MININECK
