HR 7368

type ST · family 1AP1 · 38.4 kV maximum anode voltage · 110° deflection · 4 windings · 340 g

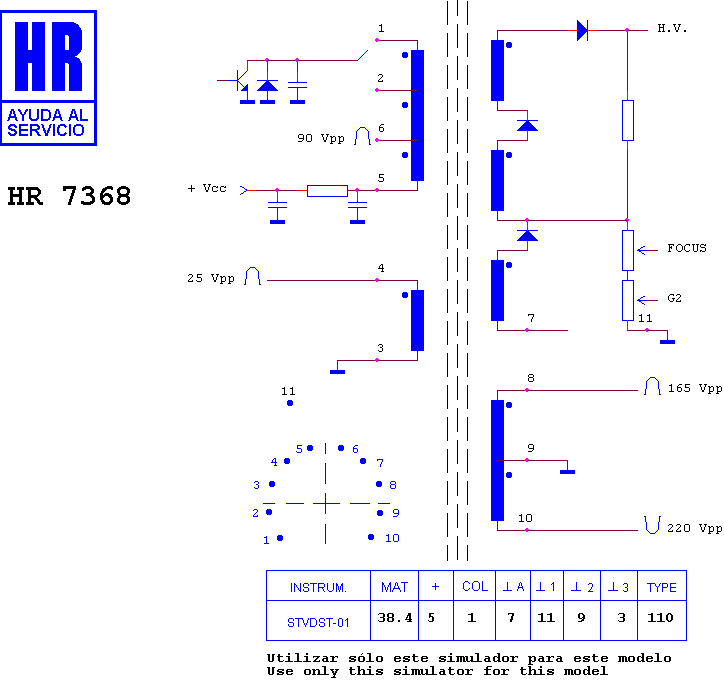

Schematic diagram for HR 7368
schematic

Manufacturer equivalents (3)

01 AV 059 · 1 AV 059 · HR 7368

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8740 · HR 7067 · HR 80014 · HR 8406 · HR 8436 · HR 8818 · HR 8937 · HR 7185 · HR 8109 · HR 8952 · HR 80032 · HR 8578

Fitted to (3)

FENICE F 334 · FENICE F 334 C · FENICE MONITOR
