HR 80032

39.3 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

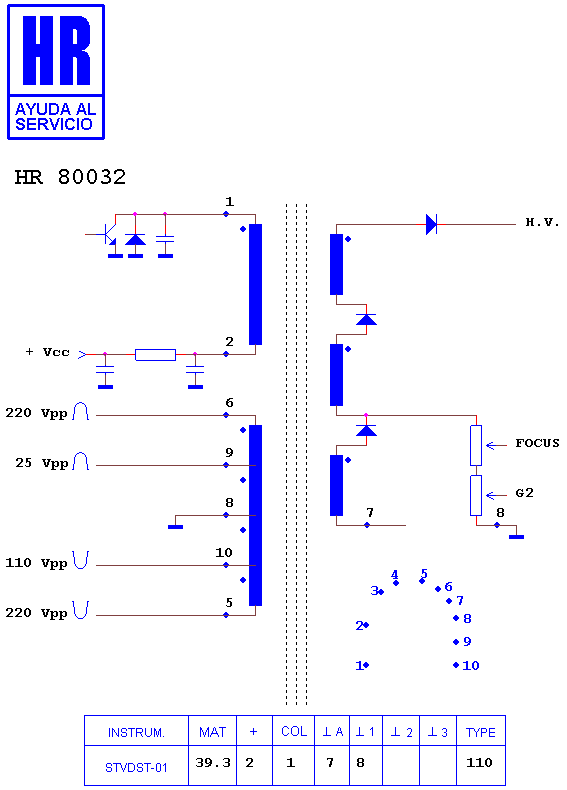

Schematic diagram for HR 80032
schematic (archived)

Manufacturer equivalents (5)

3210-61317 · 3210-61317-00-0 · 3210-61317-00-04 · 3210-61317-00-4 · BW00103

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8818 · HR 80030 · HR 8842 · HR 80014 · HR 8406 · HR 8991 · HR 8902 · HR 8723 · HR 8681 · HR 7701 · HR 8291 · HR 7694

Fitted to (6)

PHILCO CHASIS CPH 05 · PHILCO PCF 2700 · PHILCO PCS 2700 · PHILCO PCS 2952 · PHILCO PCS 2952 N · PHILIPS PCS 2952

Search this part in the full database
