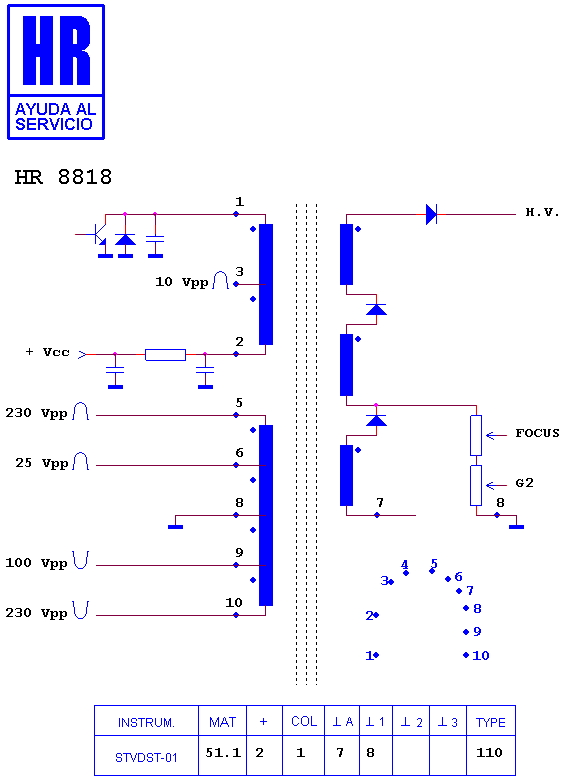

HR 8818

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

2436776

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80030 · HR 8681 · HR 80032 · HR 7701 · HR 8991 · HR 8499 · HR 8723 · HR 8902 · HR 7209 · HR 8102 · HR 7493 · HR 7146

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

HITACHI CMT 2576 · HITACHI CMT 2579
