HR 8102

type ST · family 1XP1 · 22 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

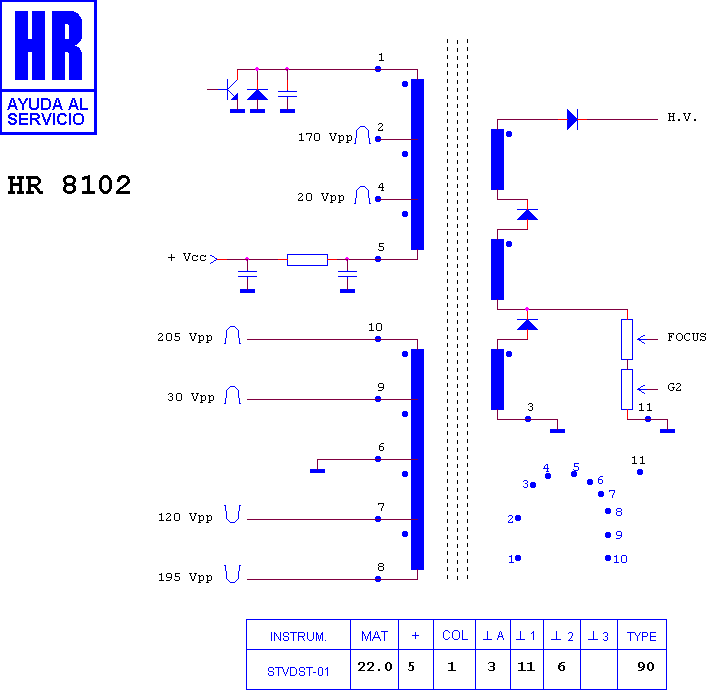

Schematic diagram for HR 8102
schematic

Manufacturer equivalents (4)

KT 6013 · TAT 2005 · TAT 2005 A · TVC/75

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7170 · HR 8799 · HR 8480 · HR 8488 · HR 7878 · HR 7428 · HR 8783 · HR 7374 · HR 6397 · HR 7198 · HR 7234 · HR 8544

Fitted to (6)

CCE HPS 2070 T · CCE HPS 2080 C · CCE HPS 2080 E · CCE HPS 2080 F · CCE HPS 2080 H · CCE HPS 2095
