HR 8115

type ST · family 1XP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

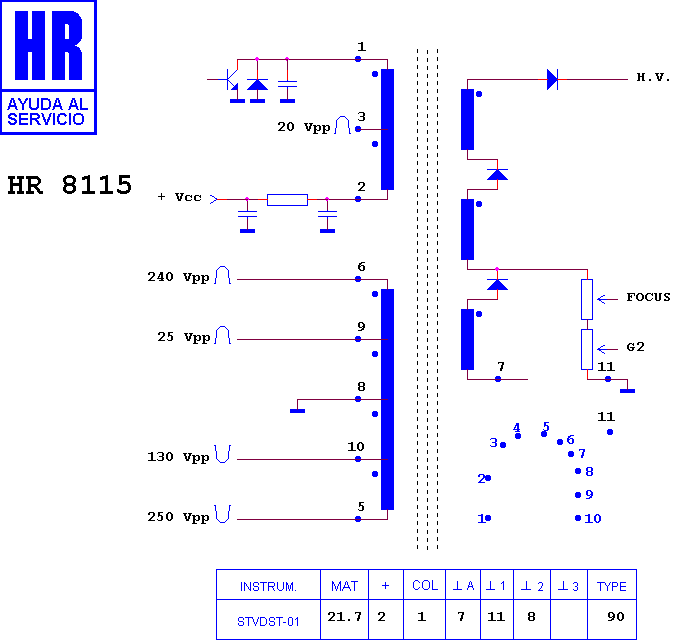

Schematic diagram for HR 8115
schematic

Manufacturer equivalents (9)

1392.5005 · 3210-61315 · 321061315-00-1 · B 32 3454 001 · B 32 3454 001 000 · B 32 3454 003 · B323454 · KT 3010 · TVC/29

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8114 · HR 7964 · HR 7878 · HR 8783 · HR 7800 · HR 8544 · HR 8768 · HR 7428 · HR 8102 · HR 8136 · HR 7209 · HR 8799

Fitted to (14)

PHILCO CHASIS CPH 05 · PHILCO CPH 05 · PHILCO PC 2043 · PHILCO PC 2044 · PHILCO PC 2046 · PHILCO PC 2144 · PHILCO PC 2146 · PHILCO PCM 2043 · PHILCO PCM 2044 · PHILCO PCM 2045 · PHILCO PCM 2046 · PHILCO PCM 2144 · PHILCO PCM 2145 · PHILCO PCM 2146
