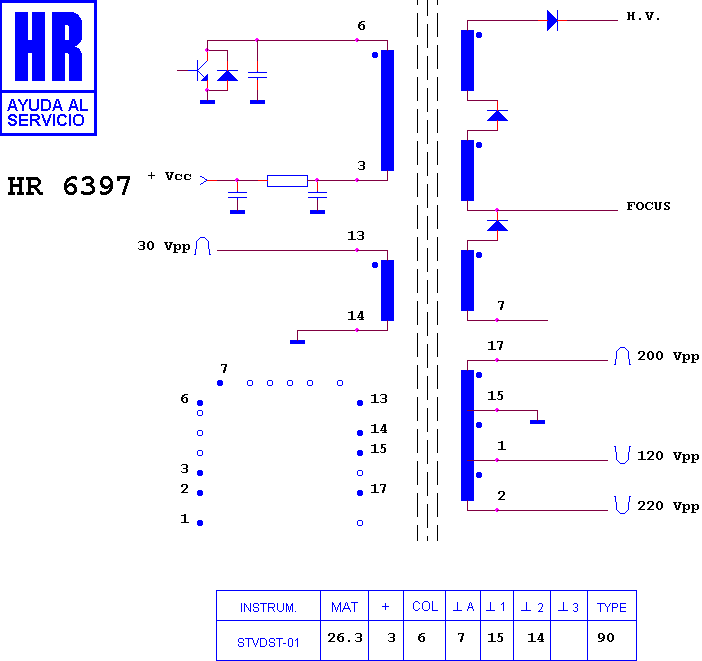

HR 6397

type ST · family 1IS1 · 26.3 kV maximum anode voltage · 90° deflection · 4 windings · 407 g

Manufacturer equivalents (10)

140 17025 · 3106 108 37320 · 3106 108 37321 · 37320 · 37321 · 37322 · 37323 · 37324 · 37325 · 4806 140 17025

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7493 · HR 8102 · HR 7716 · HR 8398 · HR 7209 · HR 7633 · HR 8170 · HR 8783 · HR 8115 · HR 7044 · HR 8544 · HR 8768

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
• HR 16524 — Focus control

Fitted to (2)

PHILIPS 21 CT 7470 · PHILIPS CHASIS CTO-C
