HR 8544

type ST · family 1YP · 16.9 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

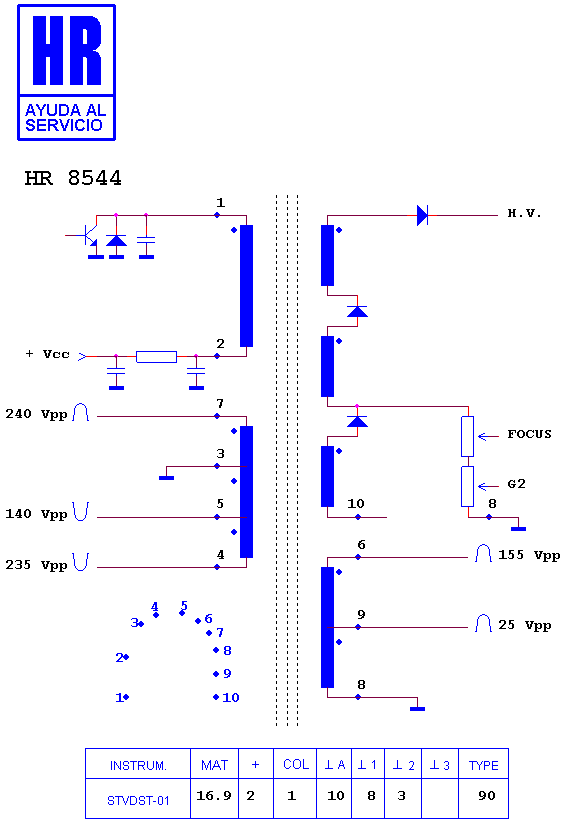

Schematic diagram for HR 8544
schematic

Manufacturer equivalents (11)

BSC 25-2068 S · BSC25-20689 · F 0148 PE-M · F 0151 PE · F 0151 PE-SA · F 0156 PE-B · F0148PE · F0156PE · RTRNF0148PEZZ · RTRNF0151PEZZ · RTRNF0156PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7878 · HR 8115 · HR 8783 · HR 8768 · HR 7964 · HR 8114 · HR 7800 · HR 8102 · HR 7045 · HR 7146 · HR 7044 · HR 7129

Fitted to (5)

SHARP 13 N-M 100 · SHARP 13 N-M 100 B · SHARP 13 N-M 150 · SHARP 13 NM 100 · SHARP CN 13 M 10
