HR 8114

type ST · family 1XP1 · 21.8 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

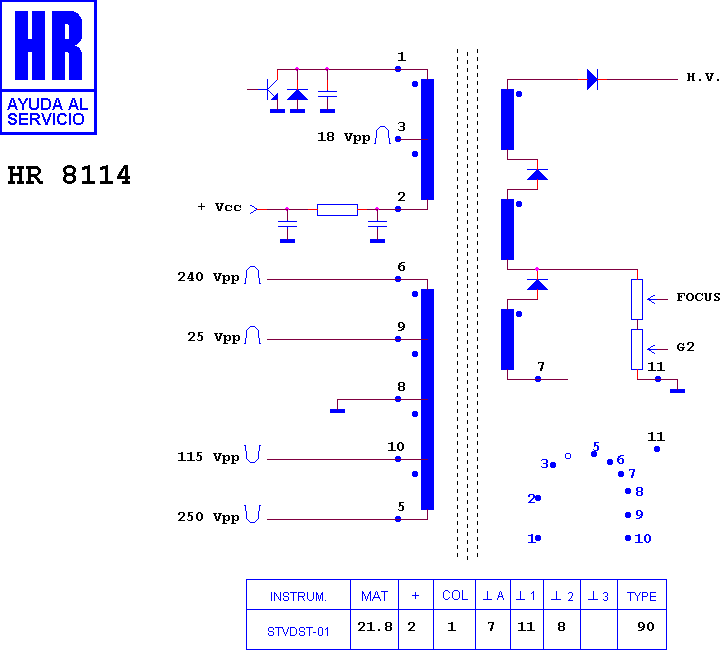

Schematic diagram for HR 8114
schematic

Manufacturer equivalents (12)

1392.0008 · 3210-61313 · 3210-61313-001 · 321061313-00-9 · B 32 3453 · B 32 3453 001 · B 32 3453 001 000 · B 32 3453 003 · FAT30583 · KN30583 · KT 3011 · TVC/28

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8819 · HR 8783 · HR 7964 · HR 7878 · HR 8115 · HR 8768 · HR 8544 · HR 8417 · HR 7428 · HR 7198 · HR 7127 · HR 7234

Fitted to (8)

PHILCO CHASIS CPH 05 · PHILCO CPH 05 · PHILCO PC 1433 · PHILCO PC 1443 · PHILCO PC 1444 · PHILCO PC 1445 · PHILCO PC 1446 · PHILCO PCM 1446
