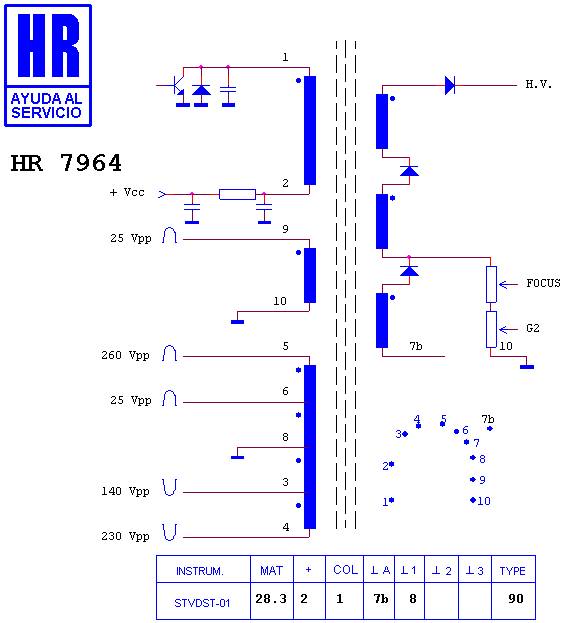

HR 7964

type ST · family 1YP · 28.3 kV maximum anode voltage · 90° deflection · 4 windings · 390 g

Manufacturer equivalents (2)

2434704 · 2434707

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8819 · HR 8783 · HR 7878 · HR 8544 · HR 8115 · HR 8768 · HR 8114 · HR 7800 · HR 8417 · HR 7146 · HR 7067 · HR 8136

Fitted to (1)

HITACHI CMT 2410

Search this part in the full database
